1. Main chip: ASIC, highly integrated, more efficient and stable
2. POWER-out(effective): 42W±2W, work well with 35W HID bulbs

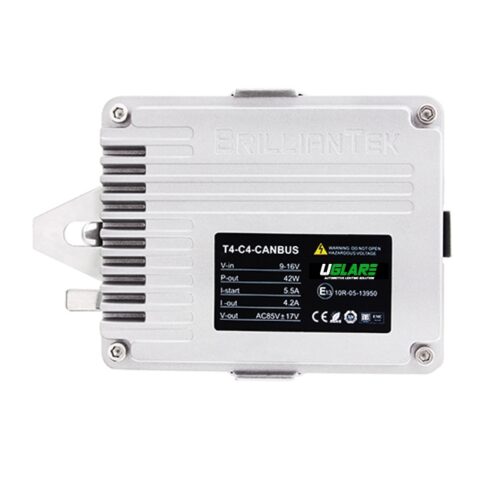

3. Fast response: FSW(frequency switch)=150KHZ, strong I-start 5.5A&13.5V, T4-C4 combining CANBUS and FAST BRIGHT together
4. Strong CANBUS: solve most BMW, BENZ, AUDI, VW etc
5. Low voltage start: light up at 8.5V, no flicker, remain lighting at 7.5V when driving.(other suppliers canbus ballasts can’t light up or flicker at such low start current, and flicker or light off at 7.5V when driving)

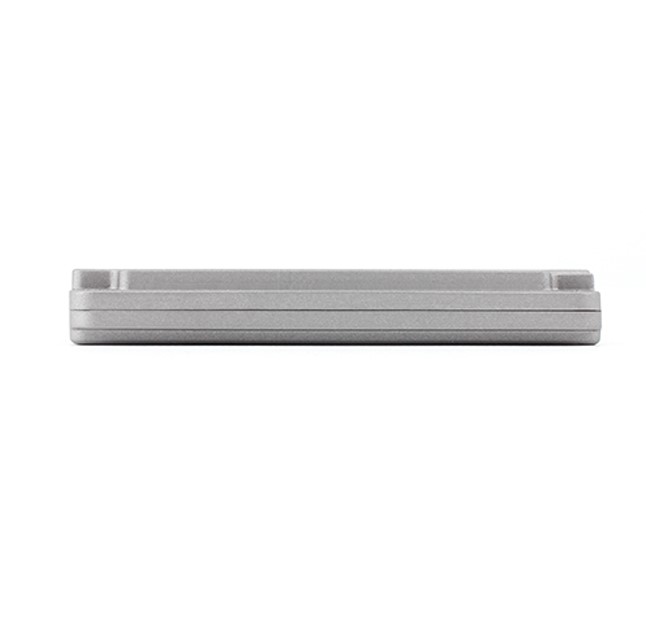

6. Ultra/super thin/slim design, heights of components≤9mm, height of ballast=12mm
7. High frequency: ±300Hz(≥250Hz/other suppliers), stable, better protection for electrode of bulbs
8. Few components: only 70+ pcs, more stable, reducing defective rates
9. EMC/EMI: strong anti-interference, totally solving electric devices interference problems, such as audio-interference, etc.

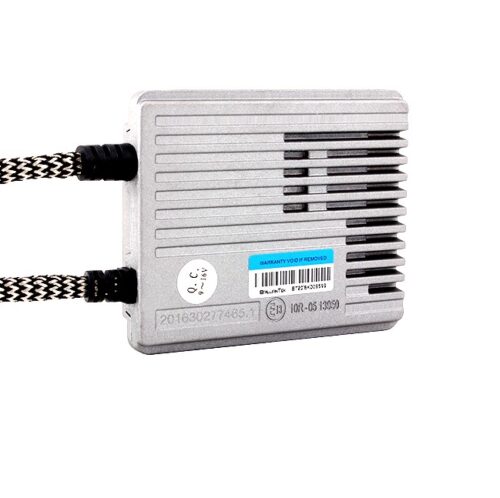

10. Copper+PET material package for input and output wires, high level quality, strong electromagnetic interference shielding function
11. All components are SMD types, lower defective rate, more stable, longer life span 5000+ hrs
12. Components used-
a) shielded SMD inductor
b) SMD ceramic capacitors, longer life span(5000 hrs/electrolytic capacitors, 30,000+ hrs/ceramic capacitors)
c) SMD ceramic capacitors, longer life span(20,000+ hrs/electrolytic capacitors, 30,000+ hrs/ceramic capacitors)
d) Main chips “ASIC chip”. Faster response, more stable, highly integrated
13. More stable of fast start and light up, no flicker or shaking
14. Strong self-adjustment function when starting, ensuring lighting up successfully at one time for all different brands and quality HID bulbs
15. Supporting fast flashing test, max 4times/second, no lighting off when flashing test
16. Precisely constant power output reaches ±0.2W, by checking the current and voltage of loaded bulbs
17. Cold/Hot testing system, automatically controlling constant starting current according to different tubes’ temperature
18. Strong self-protection function: lack voltage-input protection, over voltage-input protection, output open circuit protection, short circuit protection, etc.
19. Ultimate temperature design: lighting up at one time at -40℃, working stably at +85℃
20. Aging temperature: working temperature is 65-70℃(80℃+/other suppliers) at 30℃ ambient temperature
21. Heat dissipation: contacts matches well between inner cover and components, such as MOSFETs, main chips, etc.

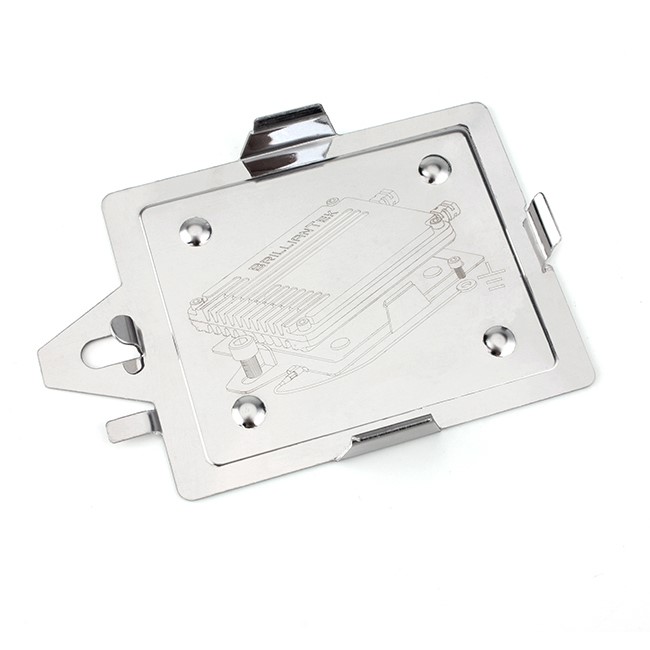

22. Bracket: special design, ventilative for better cooling down, easy installation by pushing in
23. Ground connection design is safer.
|Life span||>3000+ hrs|
Canbus, Fast Bright
1 x Manual, 1 x Relay Harness, 2 x HID Ballasts, 2 x Hid Bulb Connectors, 2 x Hid Bulbs, Installation Accessories
